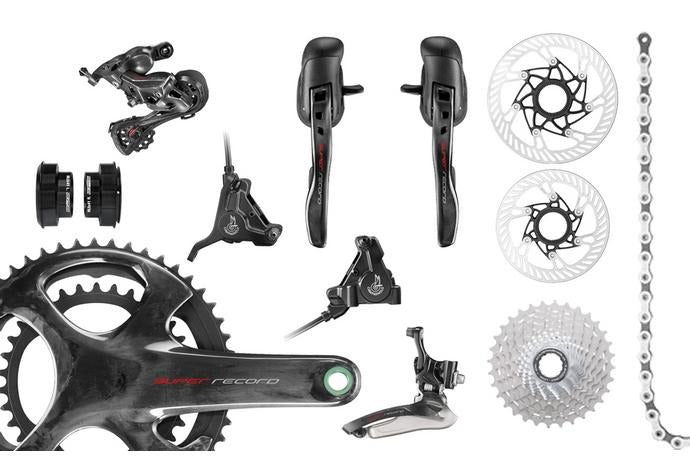

CAMPAGNOLO SUPER RECORD 12S EPS DISC-BRAKE GROUPSET v4

Campagnolo became the first company to introduce a 12-speed groupset for road bikes. This group is a more affordable version that does not sacrifice much in terms of weight or performance. It features brake calipers, rotors, shift/brake levers, front and rear derailleurs, a crankset, cassette, and chain. The brakes provide modulated and reliable braking performance in any weather conditions. This is complimented by smooth and fast shifting performance through a huge range of gears at Campagnolo’s most affordable price.

Flat Mount Disc Brakes
Campagnolo’s flat mount disc brakes provide riders with powerful and modulated braking power in any situation. These brakes are the perfect solution to bombing fast descents or cancelling out the dangers of a rainy day. On the opposite of a rainy day, the flat mount discs are excellent ate dissipating heat and keeping a healthy temperature. When the brake lever is released, the magnetic system assures that there will be no friction to cause heat or loss of speed. Between the pad and the caliper, you will find a metal plate that reduces vibration during braking.

SPECIFICATIONS

• Weight: 463g (pair; 140mm)
• Material: Aluminum

Shift/Brake Levers
This disc brake groupset features a pair of Record Disc Brake Ergopower Controls for efficient shifting and braking. These improved calipers are made of lightweight carbon fiber composite and fit better in the hands than ever. These comfortable shifters are adjustable with long and short travel options and 16mm of level reach micro-adjustability. Changing through your wide range of gears and braking precisely has never been easier than with the Campagnolo Record Ergopower Shift and Brake Levers.

SPECIFICATIONS

• Material: carbon fiber composite
• Level Adjustability: Long and short travel settings; 16mm lever reach micro-adjustability
• Weight: 795g
• Fluid: Mineral Oil; pre-bled

Rotors
The rotors in this groupset are made for greater braking compatibility and resistance to overheating. This gives them the best braking capability in the most crucial situations. The rotor utilizes rounded edges to avoid cuts to the skin in the event of a crash. An aluminum spider helps the rotor stay stiff and further contribute to heat dissipation. These center-lock rotors are the key to the very best braking performance on your road bike.

SPECIFICATIONS

• Weight: 99g (140mm); 121g (160mm)
• Material: Steel (rotor); Aluminum (carrier)
• Diameter: 140, 160mm
• Compatibility: Centerlock hubs, Campacnolo brakes

FRONT DERAILLEUR
This front derailleur is a huge part of that group to help flawlessly move between the wide range of gears. This derailleur features a taller shifting arm which allows for quicker up shifts with less effort and more accuracy. The inner cage shape has also been altered, helping it prevent the chain from rubbing and slowing down your shifting. The derailleur is also extremely lightweight and redesigned for 32mm of tire clearance. Campagnolo’s 12-speed groupset is an innovative and improved groupset and this derailleur is a huge part of that.

SPECIFICATIONS

• Weight: 81g
• Material: Aluminum, steel
• Mount: Braze-On
• Gearing: 2x
• Compatibility: Record, Super Record (12-speed)

REAR DERAILLEUR
Campagnolo’s Record rear derailleur is a great example of their improvement in the 12-speed system. With an extra cog, the rear derailleur has to be incredibly smooth and durable to accommodate larger jumps. Ultra-Shift geometry lowers the friction to create smoother shifts. The cage of this derailleur has been engineered in a way that it can be used with both 11-29t and 11-32t cassettes. A techno-polymer is reinforced with lightweight carbon to keep a strong structure without adding too much weight. The Campagnolo Record rear derailleur is a perfect solution to the smoothest 12-speed shifting on the road.

SPECIFICATIONS

• Weight: 216g
• Material: Polymer (body); Carbon Fiber (parallelogram/cage plate)
• Pull Type: Mechanical
• Cage Length: Medium
• Capacity: 35t
• Cassette Range: 11-32t, 11-29t
• Compatibility: Record, Super Record (12-speed)

CASSETTE
The Campagnolo Super Record 12-speed cassette had to evolve to properly match the current dimensions of wheels and frames. Campagnolo pulled this off flawlessly to help provide seamless mechanical shifting for your road bike. Thinner cogs along with a stiff aluminum spider help riders find their perfect gear through a wider range of options. This cassette is used on the high-end Super Record groupset and can be yours for a lower price.

SPECIFICATIONS

• Cassette Type: Campagnolo 12
• Weight: 266g
• Cog Size: 11-29t
• Cog Material: Nickle/Chrome-coated steel
• Carrier Material: Aluminum

CRANKSET
The Campagnolo Record 12-speed mechanical groupset brings out the best performance in a road bike. This crankset is the force behind the entire drivetrain. The lightweight carbon crank is free of holes, making it more aerodynamic than ever. An updated spider ring adds extra stiffness and an optimized chain line that creates optimal power transfer and a smooth pedal stroke. Uni-directional carbon crank arms contribute to that smooth power transfer, giving you a simple, yet efficient ride to go along with your 12-speed system.

SPECIFICATIONS

• Arm Material: Carbon
• Bolts: 8
• Rings: 2
• Bolt Circle Diameter: 122mm small ring, 145mm big ring

Chain
This chain is engineered to specifically perform with the extra cogs in a 12-speed groupset. The pins and outer links have been reshaped to contribute to smoother and faster shifting. The new pings are also hollow to come in at an unprecedented 220 grams. The entire chain is treated with a lubricant that keeps it smooth, precise, and longer lasting. Campagnolo’s newest chain is lighter, more durable, and quieter than ever.

SPECIFICATIONS

• Weight: 220g
• Material: Steel
• Connection: Ultra-link
• Width: 5.15mm
• Compatible Components: Super Record; Record 12-speed

SHIPPING NOTE: Depending on groupset specs shipping will leave the shop in 48 - 96 hours.
